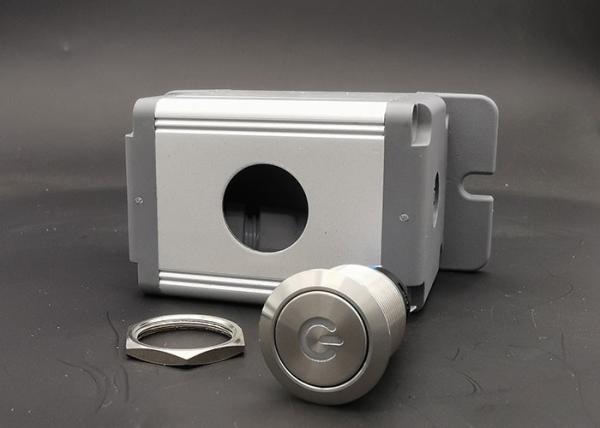

16mm IP67 Illuminated Panel Mount Push Button Switch With Industrial Control Box
Feature:
- Variety of color
- Momentary/ Alternated
- Long life, high reliability
- Anti-Vandal IK09/ Sealed IP65
- Illuminated and Non-Illuminated
Description of PUSH button Box:
- Product Name : Metal push button switch control box
- Shell Material : Aluminum and plastic
- Product Features : Dustproof, waterproof and impact resistant
- Installation Size : 19mm
(Our factory also produces button boxes of 16mm and 22mm.)
Description:
- Power LOGO LED illuminated Metal push button switch ;
- Suitable for 19MM mounting panel ;
- Stainless Steel material ;
- Waterproof and can be used outdoors ;
- The Pigtail socket is tailor-made for it and can be installed without welding.
Specification
| Product Parameters |
| Model | LA16F-11YSC |
| Dia. | 16mm |
| Max.Switch Rating | Ith : 5A Ui : 250V AC |
| Outshell/Press Key | Stainless Steel |
| Base material | PBT |
| Terminal Type | Pin Termlmal (2.8*0.5mm) |
| Mounting panel thickness | 1-10 mm |
| Ambient Temperature | -20℃～+55℃ |
| Switch Operation | Momentary or Latching |
| Package | Push button switch + Pigtail socket |
| Led Parameters |
| Led Symbol | Power Symbol / Customized |
| Led Color | Red,Green,Yellow,Orange,Blue,White,Purple |
| Rated Voltage | 3V 6V 12V 24V 36V 110V 220V 360V for choose. |
| Reference Life | More than 40,000 hours
|
About us:
We focus on r&d, manufacturing and sales of high quality metal button switches.With 12 years of experience in the industry engineers, professional r & d, professional sales, service team, high-quality management and professional manufacturing team.We are now independent innovation: 6 mm, 8 mm Ф Ф, Ф 10 mm, Ф 12 mm, 16 mm, 19 mm Ф Ф, Ф 22 mm, 25 mm, Ф Ф 28 mm, 30 mm, Ф Ф 40 mm, 19 * 13 mm and other series of metal push button switch and lamp.
There are self-locking, self-duplicity, luminous type with lamp, waterproof type (up to IP67 level), protection (up to IK10 level, two-color luminescence, tricolor luminescence and other functions of the switch, especially the newly developed high-current metal button switch, the current up to 10A.Most of the products have passed CCC, CQC, CE and other authoritative certification.
Our brand is widely trusted and recognized by customers or designated for use.We will make more efforts to develop and innovate, to produce products more in line with market demand, and to provide dedicated services.
