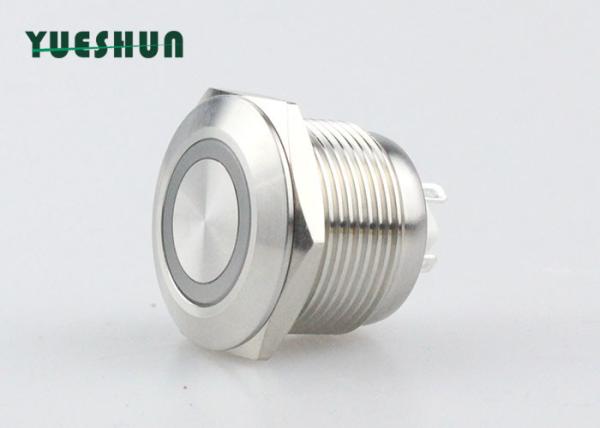

Ring LED 12 Volt Push Button Starter Switch 19mm Mounting Hole Easy Installation

Name: Ring LED 12 Volt Push Button Starter Switch 19mm Mounting Hole Easy Installation
Brand: YUESHUN
Price: 1 USD

Brand Name : YUESHUN

Model Number : JS19F-10E

Certification : CE RoHS

Place of Origin : Wenzhou, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T to our company account or by paypal

Supply Ability : 5000Pcs/Day

Delivery Time : 3-7 work days

Packaging Details : The product is packed in foam box to prevent damage during transportation.

LED color : Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.

Led Voltage : 3V 6V 12V 24V 36V 110V 220V 360V

Color : Silver

Body Material : Stainless Steel

Weigh : 30g

Terminal type : Pin Termlmal

Contact Now

12 volt Ring LED illuminated 19mm Panel Mount Push Button Switch Metal Momentary push button starter switch

Product Fatures

- Enclosure Material: Stainless Steel;High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
- Momentary Switch: Press the button switch, it works ; Press the button again ,switch stops working .
- IP Degree: IP67, IK08. Waterproof Protection Can be Used in Wet or Dusty Environment. 6 means Totally protected against dust,7 means Protected against the effects of temporary immersion between 15cm and 1m.

Product Specification

Model Number	JS19F-10E/S
Mounting Hole	19mm
Max.Switch Rating	Ith : 3A Ui :250V AC
Material	Body Material: Stainless Steel
	Button Material: Stainless Steel
	Contact Material: Silver Alloy
	Base Material: PBT
The Front Shape	Flat Round Head
Terminal Type	Pin Termlmal ( 2.0 * 0.5 mm)
Switch Operation	Momentary
Contact Configuration	1NO
Mounting Panel Thickness	1-9 mm
Operation Distance	About 2.0mm
LED Parameters	Led Type: Ring Type
	LED Color: Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.
	Led Voltage: 3V 6V 12V 24V are available.
	LED Life: More than 40,000 hours
Protection Level	IP67
Operating Temp	-20℃～+55℃

Size

Ring LED 12 Volt Push Button Starter Switch 19mm Mounting Hole Easy Installation
